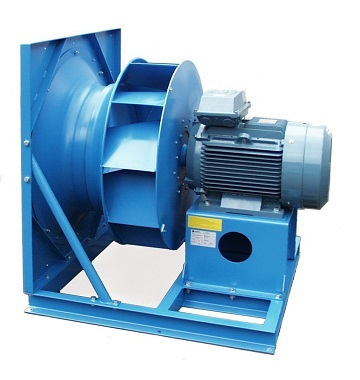

NPA / ANPA AL (Single width single inlet direct driven plenum fan)

FEATURES:

Continuously welded and painted steel impeller with 10 Airfoil blades (ANPA, size 12’’ to 55’’) or welded aluminum impeller (ANPA AL, sizes 12’’ and 25’’).
New rotating diffuser impeller design on all the sizes.
All impellers are statically and dynamically balanced to a grade of G=2.5
Galvanized or painted inlet cones designed for optimal airflow through the impeller
Clockwise and counterclockwise rotation available

BENEFITS:

Suitable for applications up to 12.5” WG SP and volumes to 100,000 CFM.
The new rotating diffuser design slows down the air and allows a static pressure regain.
Aluminum wheels allow smaller motors selection
Efficient in array installations
T3 (exceeds class II max performance) on steel impellers up to size 28’’, class II on steel impeller sizes 32’’ to 55’’.

DOWNLOADS:

HOME

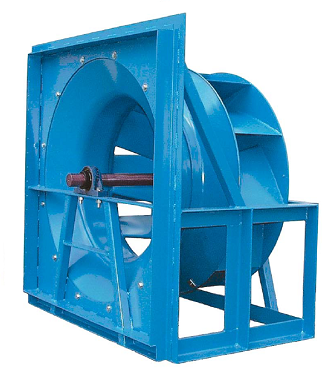

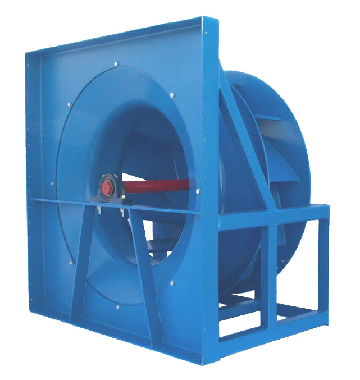

NAPAF / NAPBC (Single width single inlet plenum fan)

FEATURES:

Continuously welded and painted steel impeller with 10 Airfoil blades (NAPAF, size 12’’ to 63’’) or backward curved (NAPBC, sizes 10’’ and 11’’).
New rotating diffuser impeller design on all the sizes.
All impellers are statically and dynamically balanced with shaft to a grade of G=2,5
Heavy gauge welded and painted steel structures.
Galvanized or painted inlet cones designed for optimal airflow through the impeller
Clockwise and counterclockwise rotation available

BENEFITS:

Suitable for applications up to 12.5” WG SP and volumes to 120,000 CFM.
The new rotating diffuser design slows down the air and allows a static pressure regain.
Very wide operational working field with high efficiencies and low noise emissions.
Class II available on all sizes.

DOWNLOADS:

HOME

Coming Soon!

Please be aware that this page is still under construction

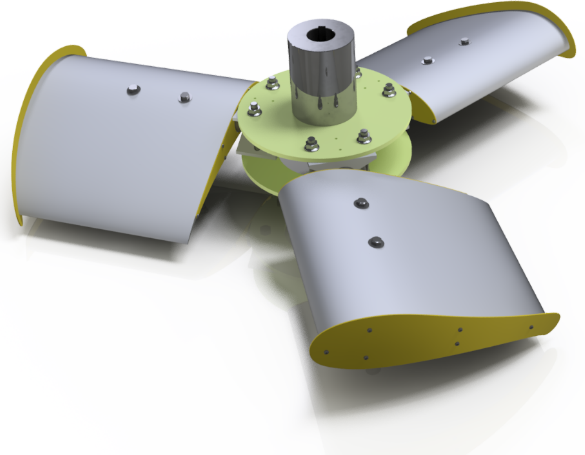

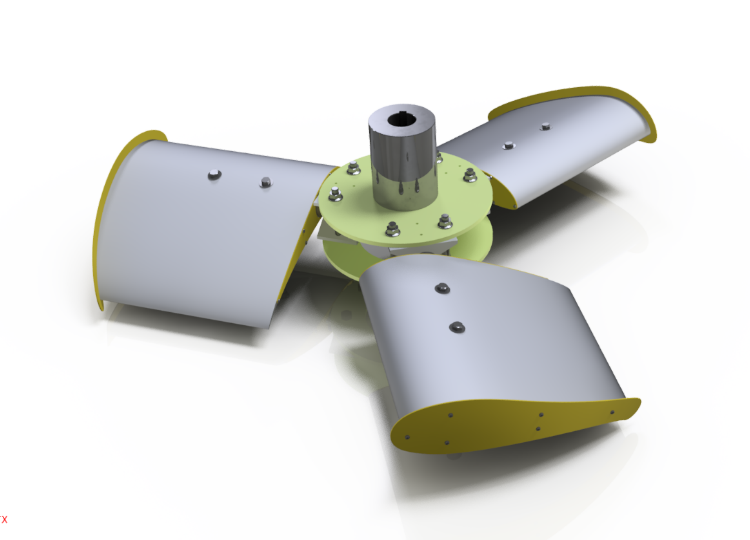

	Propeller Diameter	Max Performance	Application Design	Drive
Medium Diameter	32″ to 48″	90,000 cfm or 9 in.w.g. 152,911 m3/h or 1993 Pa	Tube Axial	Belt or Direct
Large Diameter	54″ to 96″	140,000 cfm / 6 in.w.g. 237,861 m3/h / 1495 Pa	Tube Axial	Belt or Direct
Extra Large Diameter	7′ to 16′	350,000 cfm / 3.5 in.w.g. 594,654 m3/h / 872 Pa	Special design for air cooled heat exchangers	Belt

All axial fans can be supplied as a bare propeller.

We warn all our partners that the use of trademark and/or brand “Comefri” shall be considered authorized and lawful only if it concerns the products manufactured by one of our factories, which are exclusively the following:
Comefri Italy – Comefri Gmbh – Comefri UK Ltd – Comefri France – Comefri USA – Comefri China – Comefri Fan Systemleri (Turkey)
Please verify all the products labelled “Comefri” at your disposal and contact us whenever you find products which are not manufactured by one of the aforesaid factories.
Further, consider that the use of the trademark and/or the brand “Comefri” by third parties is unauthorized and unlawful without our prior formal authorization.

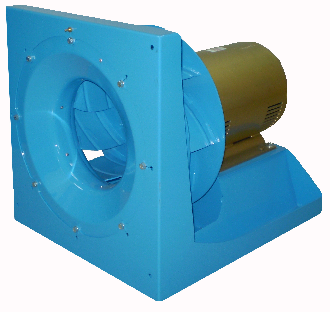

ANPL / ANPL AL (Single width single inlet direct driven plenum fan)

FEATURES:

Continuously welded and painted steel impeller with 8 backward curved blades (ANPL, size 10’’ to 55’’) or welded aluminum impeller (ANPL AL, sizes 10’’ and 25’’).
New rotating diffuser impeller design on all the sizes.
All impellers are statically and dynamically balanced to a grade of G=2.5
Galvanized or painted inlet cones designed for optimal airflow through the impeller
Clockwise and counterclockwise rotation available

BENEFITS:

Suitable for applications up to 11” WG SP and volumes to 80,000 CFM.
The new rotating diffuser design slows down the air and allows a static pressure regain.
Aluminum wheels allow smaller motors selection
Efficient in array installations
Class I and class II on steel impeller sizes 28’’ to 55’’.

DOWNLOADS:

HOME

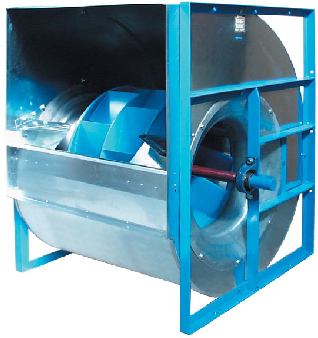

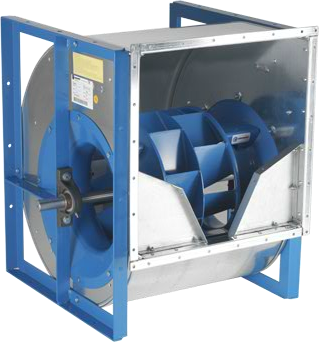

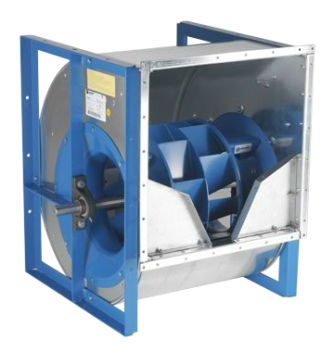

ATZAF FF (Double width double inlet airfoil housed fan)

FEATURES:

Steel impeller with 10 (x2) Airfoil blades, continuously welded. Wheel diameters range from 12” to 49”.
Galvanized inlet cone with Forefinger (patented) and housing.
Housing spot welded up to size 18’’, with Pittsburgh closure from size 20”
Low maintenance ball or roller bearings
Impeller with shaft statically and dynamically balanced at G 2.5
Trapezoidal cut-off

BENEFITS:

Suitable for applications up to 13.5” WG SP and volumes to 130,000 CFM
Peak efficiencies over 80%
Easy interchangeability with ATLI models thanks to standardized dimensioning.

FOREFINGER BENEFITS:

Increased airflow and pressure: for a required volume and pressure the fan can run at lower rpm or can be selected smaller
More uniform flow at the fan outlet for improved filter and coil efficiency
Wider working range with high efficiency
Significant reduction of noise, especially in the low frequencies

DOWNLOADS:

HOME

Electronic COMETER

FEATURES:

The Electronic Cometer is a transducer that calculates and displays the airflow delivered by a fan. The determination is made by measuring the piezometer ring differential pressure. It measures up to 10 WG SP.
the measuring system can achieve an

accuracy of ± 5%.

BENEFITS:

The same Electronic Cometer can equip all double double inlet and plug fans since the formulas are pre-programmed and the coefficients can be set during installation.
Electronic Cometer installation is very easy on air handling units fans.

DOWNLOADS:

Operating & Maintenance Instructions (Login Required)

HOME

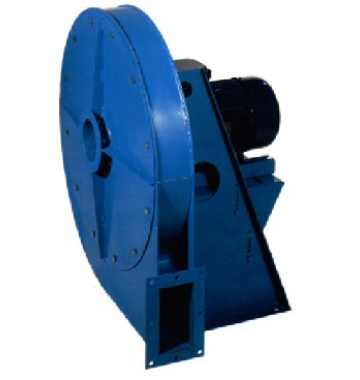

DP BLOWER

FEATURES:

Direct drive, very high pressure, low volume blower design.
Steel wheel, in 18 inch through 36 inch diameters, fully welded with radial blades design.
Being a radial bladed wheel it is self-cleaning.
Housing is manufactured of carbon steel, continuously welded and appropriately reinforced.
Maximum operating temperature for standard fan execution is 175 degrees F.

BENEFITS:

Very suitable for applications up to 72 inches WG SP and 20,000CFM.
Flat fan performance curve make DP Blower ideal for OEM and other industrial applications requiring a high pressure fan.
Can be utilized for the treatment of air containing granular particles or dust.
Fan is suitable to be oriented by 45 degree steps.
Fan is available in AMCA arrangements #4 & #8. At special request a belt drive arrangement #1 fan design is available.

DOWNLOADS:

Catalog (Login Required)

HOME

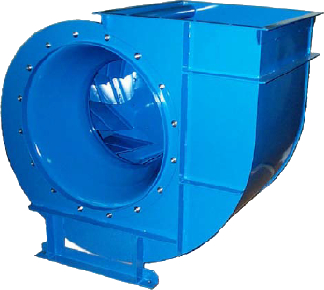

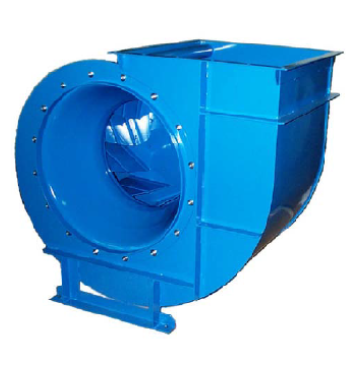

BCE (Single width single inlet backward curve housed fan)

FEATURES:

Steel, SWSI, backward curved impeller for industrial applications available fully welded and painted. Wheel diameter range is from 16 through 63 inches.
Wheels are also available in three different widths, with a full width wheel (BCE25) design, and two reduced (BCE17 & BCE15) widths to better meet system requirements.
All fan housings are manufactured in sheet steel, continuously welded, reinforced with steel stiffeners, and coated with anti-corrosive epoxy paint.
Fan have low maintenance, double row ball bearings or double row roller bearings in cast iron pillow blocks.
Impeller and shaft are statically and dynamically balanced to Grade G6.3 (ISO1940). Grade G2.5 is available upon request.

BENEFITS:

Very suitable for industrial applications up to 25 inches WG SP (31 inches WG TP) and volumes to 125,000CFM.
Peak efficiencies in excess of 80% TE.
Standard bearing support is separated from the fan housing, allowing the possibility of insulating it against both noise or temperature without any design modifications.
Design allows for both stainless steel or hot dip galvanized executions upon request.

HOME

KHLE (Single width single inlet housed fan)

FEATURES:

Fully welded steel wheels available in 15 types of design (including material handling).
KHLE fan is available in direct drive (AMCA #4, #5 or #8) or belt driven (AMCA #1 or #9) arrangements.
Standard fans are fully welded carbon steel, and painted with epoxy. Also available upon request are hot dip galvanized or stainless steel AISI 304 and AISI 316 executions.
Standard fan operates to a maximum temperature of 212 degrees F., available with accessories for up to 750 degrees F.

BENEFITS:

Flow rate of up to 117,000 CFM and a differential pressure up to 90 inches WG.
“Customized” solutions for the OEM and industrial client with 15 wheel designs that utilizes the same housing design.
Discharge position is on 90 degree steps for up to the 40 inch wheel, and in 45 degree steps for wheel sizes 44 through 63 inches.
Truly a “workhorse” for multiple applications in the industrial market.

HOME

BAFE (Single width single inlet airfoil housed fan)

All of the BCE FEATURES “except”:

No stainless steel construction is available on the airfoil wheel design.
Wheel is only available in the full width, BAFE25 design: no partial widths.

BENEFITS:

High efficiency, 10 bladed true airfoil wheel design with a continuously welded backplate. Coated with epoxy paint.
Peak efficiencies in excess of 85% TE.
Better sound ratings than most similar fan designs.

HOME

MHZ & MAZ (Double width double inlet Housed fans)

FEATURES:

Fully welded, DWDI backward curved (MHZ) or true airfoil (MAZ) wheel designs available for semi-industrial applications.
Wheel sizes available from 12 inch through 50 inch diameters.
Impeller and shaft statically and dynamically balanced at Grade G2.5.
Fully welded housing, reinforced and painted with corrosion resistant epoxy.
Bearing support is a separate component. It can be easily removed, as the inlet cone, for easy access to the wheel. The housing is then left in place.

BENEFITS:

Fans are suitable for applications up to 16 inches WG SP, and 150,000CFM.
TE in excess of 80% for MHZ and MAZ fans.
Upon request, stainless steel and hot dip galvanized construction is available.
Excellent selection for naval industries, off shore installations, the electronics sector, and when heavy duty HVAC applications call for a semi-industrial quality fan.
Can also be supplied to meet ATEX Directives.

DOWNLOADS:

Brochure
Catalog (Login Required)

HOME

STANDARD STEEL BACKWARD CURVED CENTRIFUGAL INDUSTRIAL FANS

	MODEL	BLADE	DRIVE	SIZES	PERFORMANCES
Double inlet	MAZ/MHZ*	Airfoil/Curved	Belt or Direct	12″ to 50″	16 inWC SP, 150,000CFM

	BAFE	Airfoil	Belt or Direct	16″ to 63″	14 inWC SP, 150,000CFM
Single inlet	KHLE	Flat, Curved or Airfoil	Belt or Direct	S	P
	BCE	BCE Curved	Belt or Direct	16″ to 63″	25 inWC SP, 125,000CFM

High Pressure Blowers	DP	Flat	Direct	18″ to 36″	72 inWC SP, 11,500CFM

* these models are available also in twin configuration

STANDARD STEEL BACKWARD CURVED CENTRIFUGAL INDUSTRIAL FANS

All our industrial products can be customized upon request and provided as a complete assembly with the motor.

Available customizations include:

high temperature and insulated executions
stainless steel wheels
arrangement 8 complete assemblies
plug fan assemblies.

Available accessories include feet, flanges, inspection door, drain plug, baseframe, isolators, inlet guards, enclosure protection, belt guards, anti spark, special paint, pivoting motor base, piezo rings, electronic Cometer.
