HVAC fans

FEATURES:

• Fiberglass reinforced polyamide impeller with 8 backward curved blades. Diameters from 7” to 18”
• Impellers are statically and dynamically balanced to G=6.3
• Galvanized or painted inlet cones designed for optimal airflow through the impeller

BENEFITS:

DOWNLOADS:

• Brochure
• Operating & Maintenance Instructions
• Catalog (Login Required)

FEATURES:

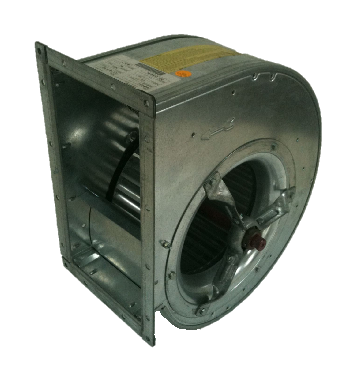

• Galvanized FC impeller with tab locked blades (TLE) or steel/fiberglass impeller (THLE) with 8 BC blades, continuously welded and painted. Diameters range from 200mm (~7’’) to 1000mm (~40’’).
• Aluminum hubs up to size 710mm (~28’’), welded steel hubs between 800mm and 1000mm (32’’ to 40’’)
• Galvanized steel housings with Pittsburgh closure (welded housing available upon request)
• Clockwise and counterclockwise rotation available

BENEFITS:

DOWNLOADS:

• Brochure
• Operating & Maintenance Instructions
• Catalog (Login Required)

FEATURES:

• Fiberglass reinforced polyamide impeller with 8 (x2) backward curved blades. Diameters from 7″ to 18″
• Galvanized inlet cone and housing
• Housing with Pittsburgh closure
• Pre-greased ball bearings
• Impellers are statically and dynamically balanced to G=6.3

BENEFITS:

DOWNLOADS:

• Brochure
• Operating & Maintenance Instructions
• Catalog

FEATURES:

• Steel impeller with 10 (x2) Airfoil blades, continuously welded. Wheel diameters range from 12” to 49”.
• Galvanized inlet cone and housing.
• Housing spot welded up to size 18’’, with Pittsburgh closure from size 20”
• Low maintenance ball or roller bearings
• Impeller with shaft statically and dynamically balanced at G 2.5

BENEFITS:

DOWNLOADS:

• Brochure
• Operating & Maintenance Instructions
• Catalog

FEATURES:

• Galvanized FC impeller with tab locked blades. Diameters from 7” to 40”
• Impeller secured to shaft with precision machined hub with keyway and locking set screw
• Impellers are statically and dynamically balanced to G=6.3
• Galvanized housing with built-in inlet cones
• Housing spot welded up to size 18’’, with Pittsburgh closure from size 20”
• Class I and class II versions available (as per AMCA operating limits specification 99-2408)

BENEFITS:

• Suitable for applications up to 8” WG SP and volumes to 91,000 CFM
• Flexible applications and temperature range of -22°F to +176°F
• Easy interchangeability with ATZAF models thanks to standardized dimensioning.

DOWNLOADS:

• Brochure
• Operating & Maintenance Instructions
• Catalog (Login Required)

FEATURES:

• Fiberglass reinforced polyamide impeller with 8 (x2) backward curved blades. Diameters from 7″ to 18″
• Galvanized inlet cone and housing
• Housing with Pittsburgh closure
• Pre-greased pillowblock ball bearings
• Impellers are statically and dynamically balanced to G=6.3

BENEFITS:

• Suitable for applications up to 13.5” WG SP and volumes to 13,500 CFM
• Flexible applications and temperature range of -22°F to +176°F

DOWNLOADS:

• Brochure
• Operating & Maintenance Instructions
• Catalog (Login Required)

NPA / ANPA AL (Single width single inlet direct driven plenum fan)

FEATURES:

• Continuously welded and painted steel impeller with 10 Airfoil blades (ANPA, size 12’’ to 55’’) or welded aluminum impeller (ANPA AL, sizes 12’’ and 25’’).
• New rotating diffuser impeller design on all the sizes.
• All impellers are statically and dynamically balanced to a grade of G=2.5
• Galvanized or painted inlet cones designed for optimal airflow through the impeller
• Clockwise and counterclockwise rotation available

BENEFITS:

• Suitable for applications up to 12.5” WG SP and volumes to 100,000 CFM.
• The new rotating diffuser design slows down the air and allows a static pressure regain.
• Aluminum wheels allow smaller motors selection
• Efficient in array installations
• T3 (exceeds class II max performance) on steel impellers up to size 28’’, class II on steel impeller sizes 32’’ to 55’’.

DOWNLOADS:

• Brochure
• Operating & Maintenance Instructions
• Catalog (Login Required)

NAPAF / NAPBC (Single width single inlet plenum fan)

FEATURES:

• Continuously welded and painted steel impeller with 10 Airfoil blades (NAPAF, size 12’’ to 63’’) or backward curved (NAPBC, sizes 10’’ and 11’’).
• New rotating diffuser impeller design on all the sizes.
• All impellers are statically and dynamically balanced with shaft to a grade of G=2,5
• Heavy gauge welded and painted steel structures.
• Galvanized or painted inlet cones designed for optimal airflow through the impeller
• Clockwise and counterclockwise rotation available

BENEFITS:

• Suitable for applications up to 12.5” WG SP and volumes to 120,000 CFM.
• The new rotating diffuser design slows down the air and allows a static pressure regain.
• Very wide operational working field with high efficiencies and low noise emissions.
• Class II available on all sizes.

DOWNLOADS:

• Brochure
• Operating & Maintenance Instructions
• Catalog (Login Required)

ANPL / ANPL AL (Single width single inlet direct driven plenum fan)

FEATURES:

• Continuously welded and painted steel impeller with 8 backward curved blades (ANPL, size 10’’ to 55’’) or welded aluminum impeller (ANPL AL, sizes 10’’ and 25’’).
• New rotating diffuser impeller design on all the sizes.
• All impellers are statically and dynamically balanced to a grade of G=2.5
• Galvanized or painted inlet cones designed for optimal airflow through the impeller
• Clockwise and counterclockwise rotation available

BENEFITS:

• Suitable for applications up to 11” WG SP and volumes to 80,000 CFM.
• The new rotating diffuser design slows down the air and allows a static pressure regain.
• Aluminum wheels allow smaller motors selection
• Efficient in array installations
• Class I and class II on steel impeller sizes 28’’ to 55’’.

DOWNLOADS:

• Brochure
• Operating & Maintenance Instructions
• Catalog (Login Required)

ATZAF FF (Double width double inlet airfoil housed fan)

FEATURES:

• Steel impeller with 10 (x2) Airfoil blades, continuously welded. Wheel diameters range from 12” to 49”.
• Galvanized inlet cone with Forefinger (patented) and housing.
• Housing spot welded up to size 18’’, with Pittsburgh closure from size 20”
• Low maintenance ball or roller bearings
• Impeller with shaft statically and dynamically balanced at G 2.5
• Trapezoidal cut-off

BENEFITS:

FOREFINGER BENEFITS:

• Increased airflow and pressure: for a required volume and pressure the fan can run at lower rpm or can be selected smaller
• More uniform flow at the fan outlet for improved filter and coil efficiency
• Wider working range with high efficiency
• Significant reduction of noise, especially in the low frequencies

DOWNLOADS:

• Operating & Maintenance Instructions
• Catalog

Electronic COMETER

FEATURES:

• The Electronic Cometer is a transducer that calculates and displays the airflow delivered by a fan. The determination is made by measuring the piezometer ring differential pressure. It measures up to 10 WG SP.
• the measuring system can achieve an
  accuracy of ± 5%.

BENEFITS:

• The same Electronic  Cometer can equip all double double inlet and plug fans since the formulas are pre-programmed and the coefficients can be set during installation.
• Electronic Cometer installation is very easy on air handling units fans.

DOWNLOADS:

• Operating & Maintenance Instructions (Login Required)
